      GAM setup with Ad Management

      GAM setup with key values

      Key-values

      Pubstack adds prefixes to most key values to make them easier to understand. The following prefixes are commonly used:

      • The ad_ prefix to describe ad unit properties
      • The bid_prefix to describe header bidding opportunities
      • The xp_ prefix to describe all A/B test properties

      Pubstack creates the key values listed below. Since Google has limitations on the number of custom dimensions and values, Pubstack creates key values as "reportable". To use a specific key values as a custom dimension, the publisher must manually convert it with the assistance of a Pubstack account manager.

      Key-Values Usage Value examples Value type Type of KV
      adm True if the ad request is managed by Pubstack, use for the reporting and billing ‘1’ dynamic reportable
      adm_ab_test Used for Poc A/B tests only - test populations of Poc-Override A/B tests 'poc:A, poc:B' predefined custom dim
      adm_stack Used for stack reporting and stack A/B test reporting 'stackID_stackversion' dynamic reportable
      ad_index The rank of the ad unit when the ad unit is present several on a page - used with dynamic ad units '1,2,3 … 50' predefined reportable
      ad_refresh-rank 1 means the second auction for the slot and so on, the key is not present on the 1st auction '1,2,3 … 10' predefined reportable
      ad_floor-rule Key uses for enabling a specific UPR, the value is computed dynamically by Pubstack ‘0.05’, 0.10...6.00’ predefined reportable
      ad_fluidstyle Values are "rectangle" | "banner". Used to determine which fluidstyle must serve.

      'banner',

      'rectangle'

      		 predefined reportable
      ad_safeframe (beta) True means the Prebid bid will be served a safeframe, the key not present otherwise ‘1’ predefined off
      ad_adunitname (optional) Name of the ad unit name when we need to use it   dynamic reportable
      bid_nobid true if no Prebid bid, use for debugging purpose, not present otherwise ‘1’ predefined reportable
      bid_mediatype Mediatype of the Prebid bid (alias of hb_format) ‘banner’, ‘outstream’, ‘native’ predefined reportable
      bid_cpm Prebid winning bid CPM, (alias of hb_pb) ‘0.20’, ‘0.15’, ‘3.10’, … predefined reportable
      bid_bidder Prebid bidder name (alias of hb_bidder) ‘appnexus’, ‘improve’ dynamic reportable
      bid_id Prebid creative and bid Id (alias of hb_adid) ‘ad35e76’, ‘7e5413i’, … dynamic off
      bid_size Prebid creative size (alias of hb_size) '300x250, 300x600...' predefined reportable
      no_cmp Only used if traffic outside EU - true if gdprApplies = false. Can be used for reporting purposes. 'true' predefined reportable
      pbstck_ab_test  Used for analytics A/B tests only - test populations of Analytics A/B tests   predefined reportable
      pbstck_refresh True if the ad request is not the 1st request, the key not present otherwise '1' predefined custom dim
      xp_variant (beta) Name of the variant for a specific ab test (source from the related meta) 'floor_optimization:true...' dynamic custom dim



      We choose to add a targeting: “ad_index” with a value of all the numbers found in the suffix of the divId. For example for a dyninfeed-1 we send 1 for dyninfeed_13 we send 13.

      If no value is set for instance "dyninfeed", ad_index=""

      Ex : css:[id^="nfb_2"], [id^="dfp_nfb_2"] as "dynamic adunit"
      If div id = dfp_nfb_3 it will not be targeted. However, it will target adunits starting with nfb_2 & dfp_nfb_2  . Will also work for dfp_nfb_23



      Orders, Line Items, and creatives

      Pubstack creates two orders to run the Prebid stack with 450 line items. The Prebid Bid Granularity is managed by Pubstack, so publishers don't need to worry about it. We double it for instream line-items.

      Pubstack does not split the orders by Prebid Bidders, but publishers still have the ability to report revenue by Prebid bidder using the key values "bid_bidder"

      Untitled (16)

      The orders and their line items are used interchangeably for the banner, out-stream, and native media types. The line items are used to implement the granularity chosen by Pubstack.

      Pubstack uses only two sizes (3x1 and out-of-page) to allow the line items to compete in the dynamic allocation and unified auction of Google Ad Manager.

      • The size "3x1" is a generic size allowing the line items to compete whatever is the real size of the Prebid bid. Using this specific size allows more robustness and agility for customizing the sizes of your ad units and stacks. Go to further, please refer to Why Pubstack Uses 3x1 Size for Prebid?
      • The size “out-of-page” is a special of GAM, used mostly for the interstitial format. To enable Prebid on the out-of-page slots, the line items required this second size in their definition.

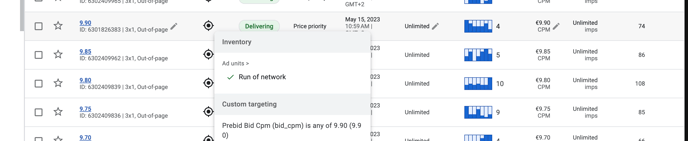

      By default, the line items target the inventory “Run-of-network”, meaning that they are enabled on the whole publisher’s inventory and the corresponding Prebid price bucket.

      Untitled (17)

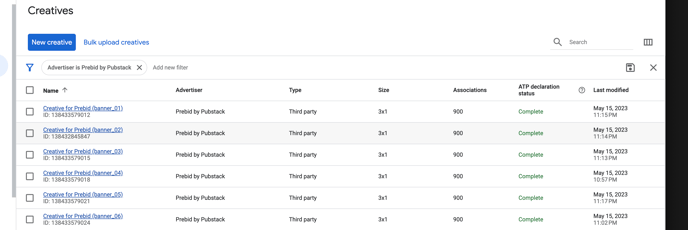

      Finally, and as it’s recommended by Prebid, Pubstack creates a set of 12 creatives to finish the Prebid setup in GAM.

      Untitled (18)
